Auto Refractor Autorefractor Refractometer Keratometry 7" TFT LCD Screen CE FDA Certification

Be the first to review this product
$2,910.00
In stock
SKU
JFXY00012
Add to Wish List Add to Compare

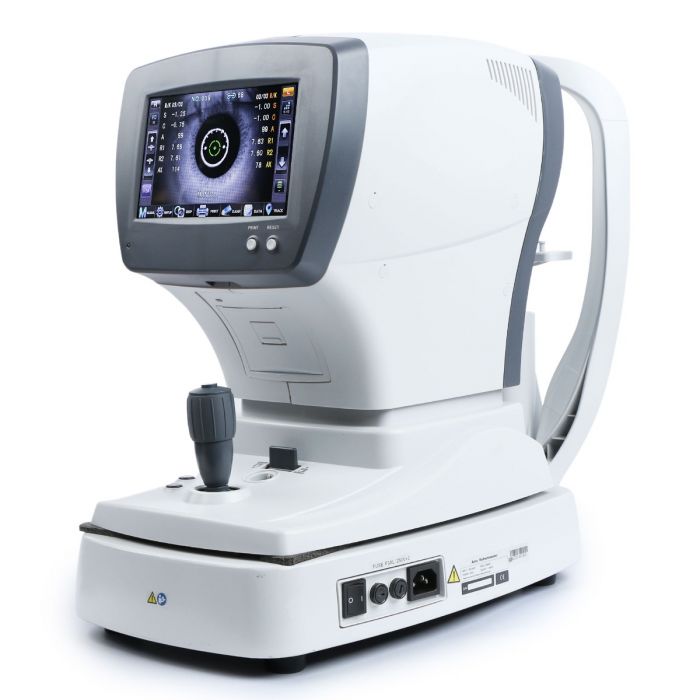

main product photo

Auto Ref/Keratometer

This product is suitable for measuring the diopter of human eyes (myopia, hyperopia, astigmatism, optical axis), and can provide data evidence for ophthalmic diagnosis and glasses prescription matching.


Basic Information

  • Tilting 7" TFT touch screen: adjustable 0 to 85°
  • Followed-up colorful fogging chart system
  • Built-in thermal printer
  • RS-232 interface
  • Equipped with Keratometer: REF, KER and R&K
  • Joystick: control the machine to move forward/backward, left/right, up/down
  • Net Weight: 32.41 lb/14.7kg
  • Product Size: 9.05"x18.90"x16.93"/23x48x43 cm

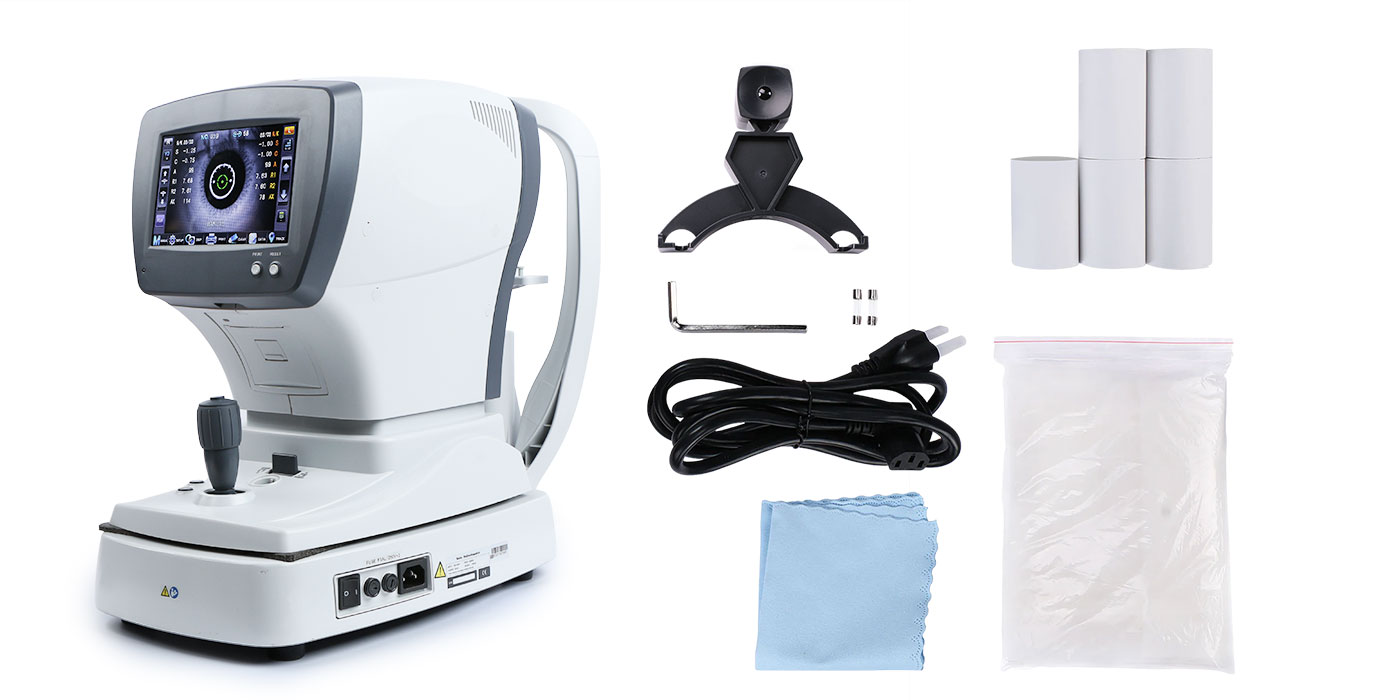

Packing List:

  • Autorefractor X 1
  • User’s manual X 1
  • Print paper X 5
  • Dust cover X 1
  • Power cord X 1
  • Fuse X 2
  • Hexagonal wrench X 1
  • Test-eye X 1

Product Features

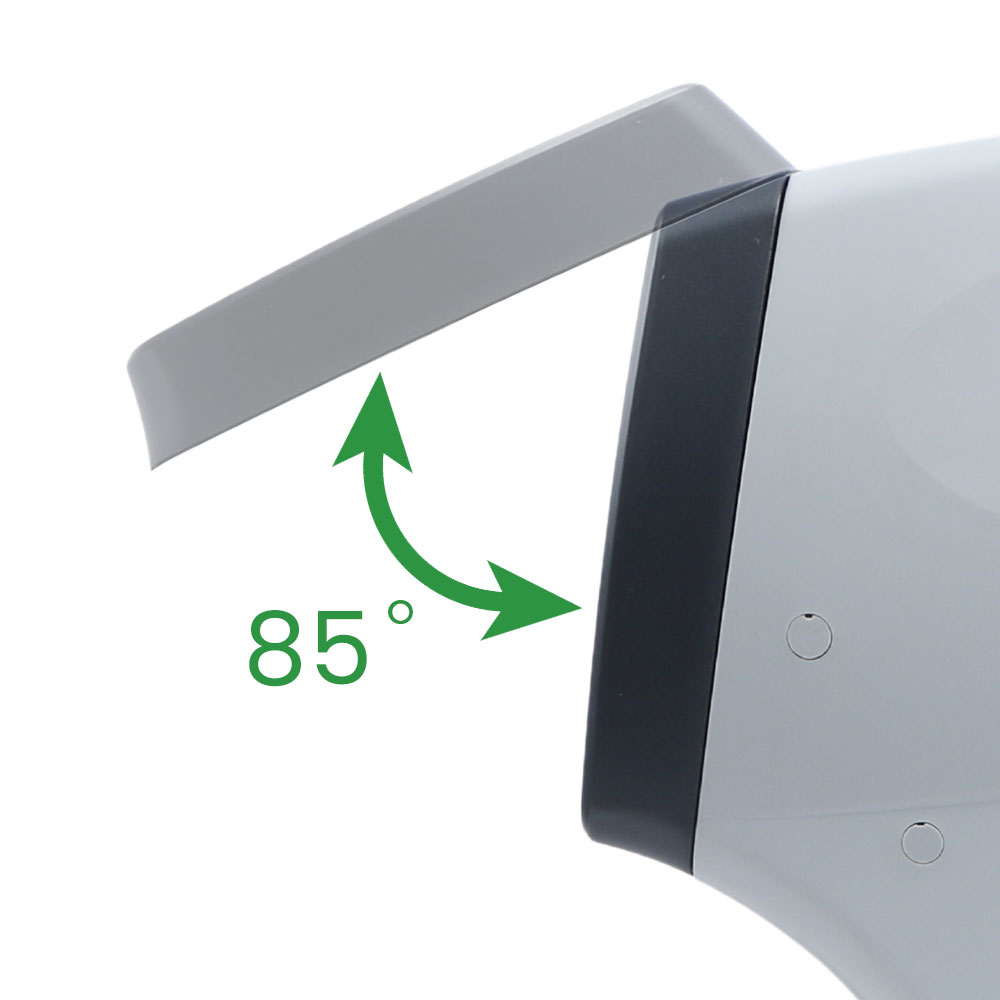

Tilting 7" TFT LCD Screen

The tilting screen angle is adjustable from 0 to 85 degrees. The large-scale touch screen displays icons and menus more clearly for easy operation.


Equipped with Keratometer

Three measuring modes can be selected by screen keys – including REF, KER, and R&K. It can measure eye diopter and corneal curvature.


High Precision

The machine uses rotating prism and double telecentric optical system technologies, and is equipped with a follow-up colorful fogging chart system. Advanced technology provides unparalleled accuracy and reliability.


Built-In Thermal Printer

The printed results are clear. Left/right eye data can be recorded up to 10 separately. The printing paper can easily be replaced.


Measurement Methods

The screen key can be set to manual/auto measurements. In addition, a tracking mode feature automatically tracks the measurement focus of the eye through automatic sensing and a 3D mobile device.


Simple and Convenient Operation

In addition to controlling the machine through the touch screen, there are also some shortcut keys on the body. The joystick can easily control the machine to move forward/backward, left/right, up/down.

Specification

Refractometer
Keratometer

Cautions


Release the Limit Screw

Step 1: Remove the plastic cap and unscrew the screw with a hexagonal wrench.

Step 2: Push the instrument by hand to control the front, back, left, and right movements of the instrument.

Step 3: To lock or unlock the machine, flip the moving lock.


Fuse Replacement

When the Power Indicator does not light up and the LCD screen does not brighten up – even if the Power Switch is turned ON – the fuse may be blown. Check to see if this is the case, and replace the fuse(s) if necessary.

Step 1: Turn off the system and disconnect the power cord from the outlet.

Step 2: Remove the fuse holder using the tip of a fine flat blade screwdriver and take out the fuse to replace it.

Step3: After installing the new fuse, connect the cord.


Test-Eye

The test-eye is used to calibrate the accuracy of the instrument.

Compare the measurement values for the test-eye with the values (SPH: -5.00D CYL: 0.00D when VD=12mm) described on the label attached to the test-eye, and make sure that the difference between the two values falls in the standard error range (SPH : ±0.25D CYL : ±0.25 D). If the difference does not fall in the standard error range, please measure again. The machine may need to be recalibrated.


RS-232 Terminal

Data cable: USB to DB9 RS232

Driver software: DNW (in most cases, the instrument will be purchased with driver software included – if not, please reach us).

Supported serial port number: COM1 to COM4 port

Supported operating systems: WIN7 and above system/WIN XP system

More Information
Barcode 888107072904
