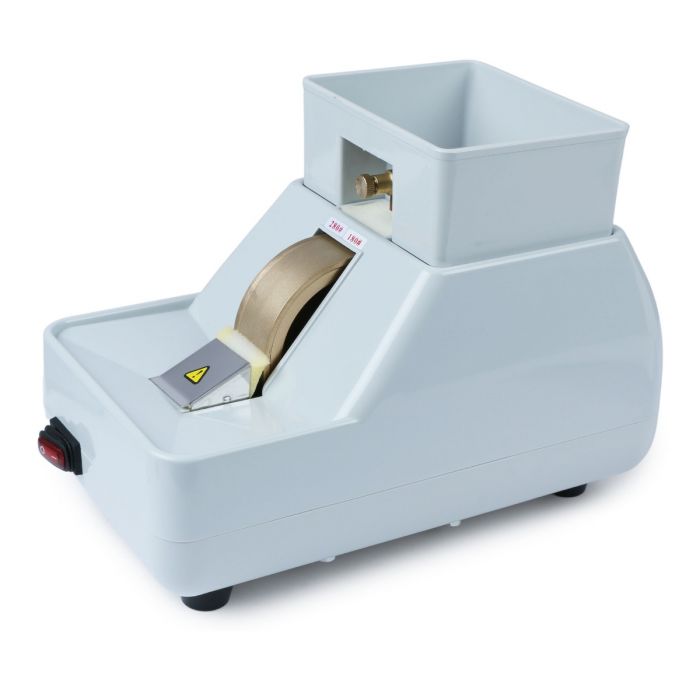

Manual Lens Grinder Optical Hand Edger 35WV Single Wheel DC Motor

Manual Lens Grinder with 35WV Single Wheel and DC Motor

Product Features

• Diamond grinding wheel: durable; single wheel with a width of 35mm, featuring a rough grinding of 16mm on the right (180#), a fine grinding of 19mm on the left (240#), and an edge truing groove.
• Water can: equipped with upper and lower water cans, both of which are removable and convenient for water replacement. The upper water can has a pure copper water valve for adjusting the water output, while the lower water can is connected to a drainage pipe for discharging wastewater.
• Double bracket and water-blocking plate: the double bracket offers high stability, while the water-blocking plate reduces water splashing.
• Grindable materials: resin, glass, PC, stone, and more.

Packing list

• Manual lens edger X 1
• Drain pipe X 1
• Power cord X 1
• Upper water can X 1
• Oilstone stick X 1
• User's manual X 1

Specification

Wheel material: adamas

Wheel Size: 14*100*35mm

Wheel parameter: 35WV, width 35mm, right rough grinding 16 mm, left fine grinding 19 mm, with edge truing groove

Wheel speed: 5500-6000 r/min

Available Material: PC, CR, glass, stone, cutters

Power Supply: AC 110 V/ 60 Hz; 55 W

Dimension: 285 x 170 x 225 mm

Weight: 5 kg
